DEUTSCH Connectors provide reliability and performance on the engine or transmission, under the hood, on motor controllers, solenoid interfaces, on the chassis, or in the cab with series of DT, DTM and DTP.
They are designed for cable to cable, cable to board, and cable to device applications with position. The Position of DT and DTM are available in 2 pin, 3 pin, 4 pin, 6 pin, 8 pin and 12 pin. DTP only available in 2 pin and 4 pin. And widely used on Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational Marine, Motorcycle.
| Product | Wire to wire connectors |
| Product ID |
|
| Original PN |

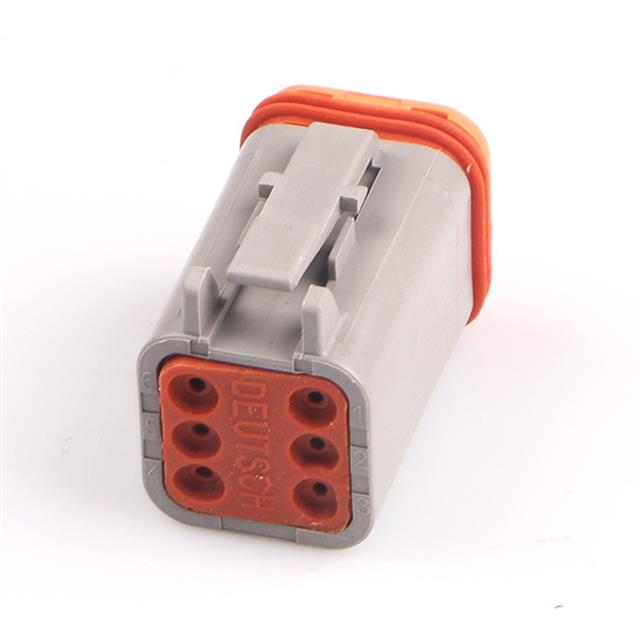

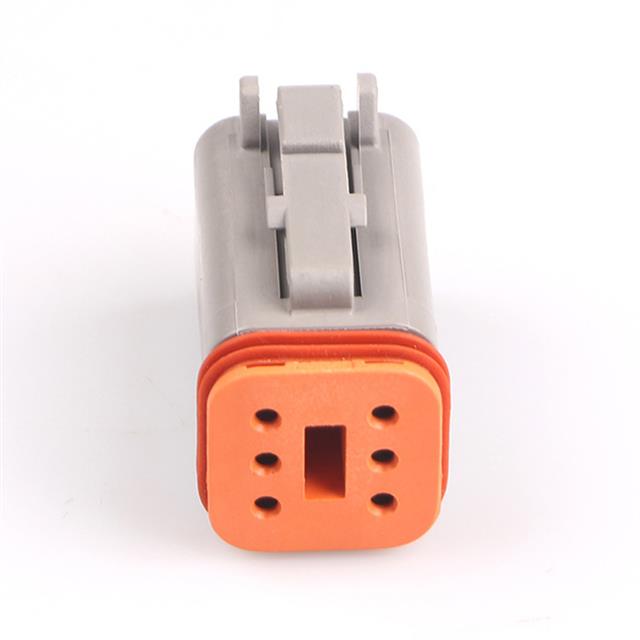

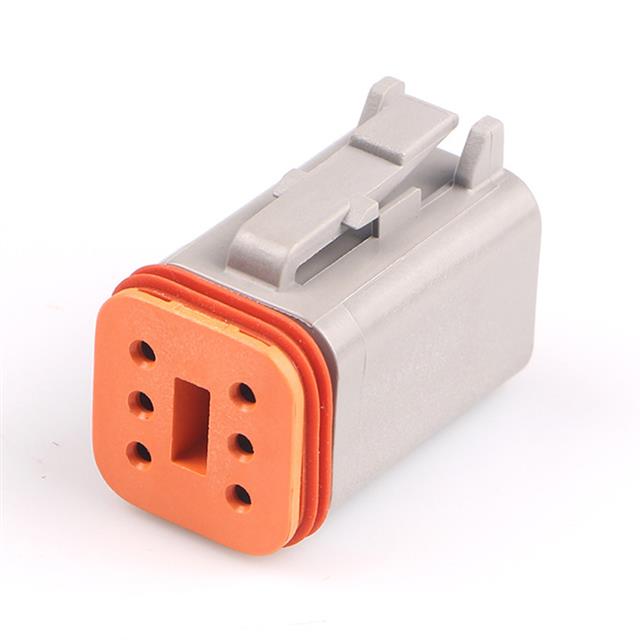

DT06-6S |
| Series | Deutsch DT |
| Number of Positions | 6 way |
| Number of Rows | 2 Row |
| Gender | Socket (Female) |
| Color | Gray |
| Material | Housing: Polyamide (PA); Pins: Copper, brass |
| Operating Temperature | - 40 C + 125 C |
Application:
For head light of bike
