How do you connect automotive wire connectors?

Date:2022.10.13   Views:1776

Share:

Do you know what is automotive connector? Automotive connectors are specifically designed for use in automobile electrical systems. The main function of it is to control the connection and disconnection of all circuits on the vehicle based on connect with automotive wiring harness. The connectors we selling are devide into two kinds. One is wire to wire connectors.The other is wire to board connectors. If you are selecting automotive wire connectors for your vehicle, make sure you consider its current rating, size of wire and voltage.


1.Wire to wire connectors: It can connect two terminated wires.

2.Wire to board connectors: They are used for connecting different automotive connectors to the circuit board of the computer.


In the following , I will explain in detail how to crimp and connect automotive wire connectors.

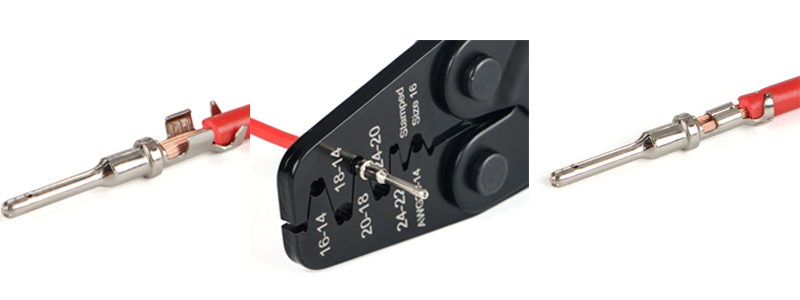

1.Tools preparing. A hand crimping tools and a hand wire stripper will be used. This is only used for hand crimping. If you have big quantity , automatic crimping machine is the best choice.


2.Stripping automotive wires. Before crimping wire with connector terminal and wire seal, please use a hand wire stripper to strip very small length of the harness wires. Brass is bared in the crimping area. Inserting brass into terminal . Put both in a hand crimping tools and crimp it.

2.1 For waterproof automotive connectors, it also need to crimp single wire seal with terminals.

2.2 For unsealed automotive connectors, it only crimp with terminals.

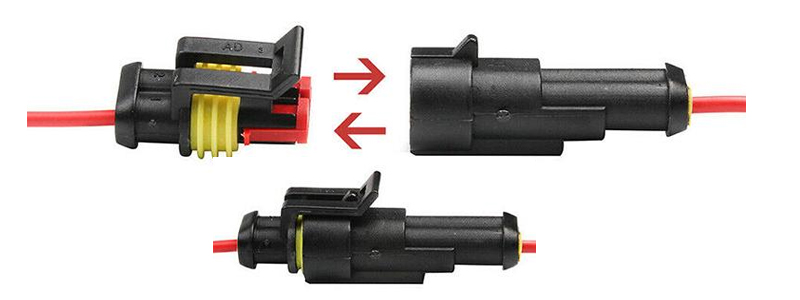

3.Connect automotive wire connectors.  In this step, please insert crimped terminal pins into connectors. Dovking the already crimped male and female connector, then the work finished. Female connector will be compatible with Male connector if they have the same slot position.



If you have any more questions about how to crimp connector terminals or how to assemble wire harness, please contact us freely, thanks.
